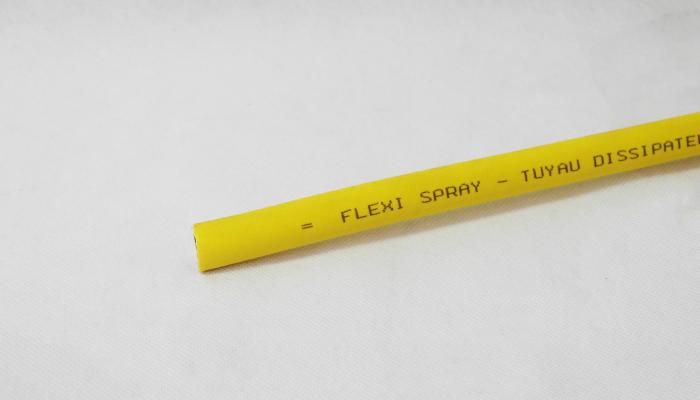

Flexi Spray®
PE paint spray hose
Antistatic hose specially designed for paint spraying applications
- Extremely flexible and lightweight
- Excellent stability due to balanced reinforcements
- Antistatic for use in flammable environments (paint booths, presence of hydrocarbons etc.)
|
Inside ø mm |
Outside ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Work pressure bar |
Burst pressure bar |
|---|---|---|---|---|---|---|
| 3.2 | 7.3 | 25 | 0 | 31 | 20 | 60 |
| 6.5 | 10 | 50 | 0 | 44 | 20 | 60 |
| 9.5 | 14.8 | 80 | 0 | 92 | 20 | 60 |
|
temperature Min °C |
temperature Max °C |
Work pressure bar |
Burst pressure bar |
Lengths M |
|---|---|---|---|---|
| -20 | 50 | 20 | 60 | * |
