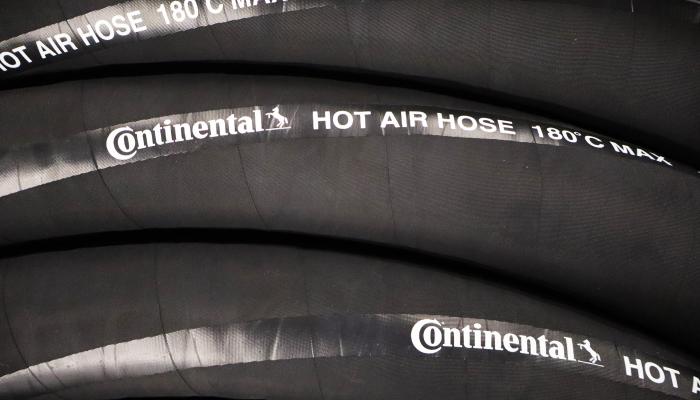

Hot Air White SW
Hot air compressor hose without spiral
Suitable for transporting hot air from the compressor to tanks on bulk transport vehicles, for dry material
- With white temperature-resistant tube
- Cover UV, ozone and weather resistant
|
Inside ø mm |
Outside ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Work pressure bar |
Burst pressure bar |
|---|---|---|---|---|---|---|
| 50.8 | 67 | 500 | 0 | 1907 | 13.5 | 54 |
| 63.5 | 82 | 680 | 0 | 2698 | 13.5 | 54 |
| 76.2 | 95 | 762 | 0 | 3107 | 13.5 | 54 |
|
temperature Min °C |
temperature Max °C |
Work pressure bar |
Burst pressure bar |
Lengths M |
|---|---|---|---|---|
| -29 | 180 | 13.5 | 54 | * |
