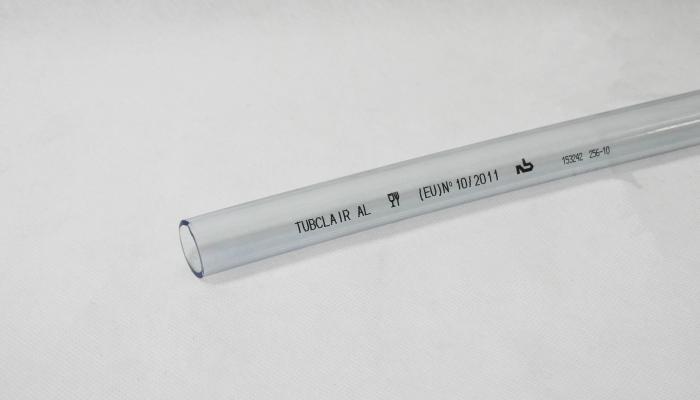

Tubclair® AL
Food grade PVC hose without reinforcements
(EU) N°10/2011 (Simulants A, B, C, D1)
Suitable for various non-pressurised liquids, water, certain acids and bases, liquid foodstuffs, milk, fruit juices, beer, wines
- Single layer construction
- Very flexible and lightweight
- High UV resistance
|
Inside ø mm |
Outside ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Work pressure bar |
Burst pressure bar |
|---|---|---|---|---|---|---|
| 2 | 4 | 0 | 0 | 11 | 0 | 0 |
| 2 | 5 | 0 | 0 | 13 | 0 | 0 |
| 3 | 5 | 0 | 0 | 15 | 0 | 0 |
| 3 | 6 | 0 | 0 | 26 | 0 | 0 |
| 4 | 6 | 0 | 0 | 19 | 0 | 0 |
| 4 | 7 | 0 | 0 | 32 | 0 | 0 |
| 4 | 8 | 0 | 0 | 46 | 0 | 0 |
| 5 | 7 | 0 | 0 | 23 | 0 | 0 |
| 5 | 8 | 0 | 0 | 37 | 0 | 0 |
| 5 | 9 | 0 | 0 | 54 | 0 | 0 |
| 6 | 8 | 0 | 0 | 28 | 0 | 0 |
| 6 | 9 | 0 | 0 | 43 | 0 | 0 |
| 6 | 10 | 0 | 0 | 60 | 0 | 0 |
| 6 | 12 | 0 | 0 | 102 | 0 | 0 |
| 7 | 10 | 0 | 0 | 50 | 0 | 0 |
| 7 | 11 | 0 | 0 | 70 | 0 | 0 |
| 8 | 10 | 0 | 0 | 40 | 0 | 0 |
| 8 | 11 | 0 | 0 | 53 | 0 | 0 |
| 8 | 12 | 0 | 0 | 77 | 0 | 0 |
| 9 | 12 | 0 | 0 | 61 | 0 | 0 |
| 9 | 13 | 0 | 0 | 82 | 0 | 0 |
| 10 | 13 | 0 | 0 | 65 | 0 | 0 |
| 10 | 14 | 0 | 0 | 90 | 0 | 0 |
| 10 | 16 | 0 | 0 | 146 | 0 | 0 |
| 12 | 15 | 0 | 0 | 76 | 0 | 0 |
| 13 | 19 | 0 | 0 | 180 | 0 | 0 |
| 12 | 16 | 0 | 0 | 105 | 0 | 0 |
| 14 | 18 | 0 | 0 | 120 | 0 | 0 |
| 15 | 19 | 0 | 0 | 127 | 0 | 0 |
| 15 | 20 | 0 | 0 | 164 | 0 | 0 |
| 16 | 21 | 0 | 0 | 174 | 0 | 0 |
| 18 | 22 | 0 | 0 | 215 | 0 | 0 |
| 18 | 23 | 0 | 0 | 195 | 0 | 0 |
| 19 | 25 | 0 | 0 | 255 | 0 | 0 |
| 20 | 25 | 0 | 0 | 215 | 0 | 0 |
| 20 | 26 | 0 | 0 | 252 | 0 | 0 |
| 22 | 28 | 0 | 0 | 275 | 0 | 0 |
| 25 | 31 | 0 | 0 | 320 | 0 | 0 |
| 25 | 32 | 0 | 0 | 380 | 0 | 0 |
| 27 | 33 | 0 | 0 | 330 | 0 | 0 |
| 30 | 38 | 0 | 0 | 500 | 0 | 0 |
| 32 | 40 | 0 | 0 | 545 | 0 | 0 |
| 32 | 42 | 0 | 0 | 705 | 0 | 0 |
| 35 | 42 | 0 | 0 | 510 | 0 | 0 |
| 38 | 48 | 0 | 0 | 789 | 0 | 0 |
| 50 | 60 | 0 | 0 | 1045 | 0 | 0 |
| 60 | 70 | 0 | 0 | 1200 | 0 | 0 |
|
temperature Min °C |
temperature Max °C |
Work pressure bar |
Burst pressure bar |
Lengths M |
|---|---|---|---|---|
| -15 | 60 | * | * | * |
