G 5400

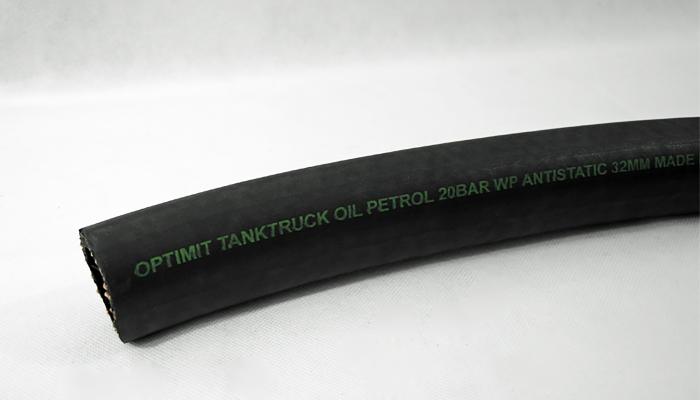

Oil resistant tanker reel hose
Suitable for petroleum products, parafin derivates, diesel, light heating oils and hydrocarbons up to 60% aromatic content
- Very flexible and kink resistant
- Electrically conductive through antistatic wire
- Especially suited for electrically and manually operated reels
|
Inside ø mm |
Outside ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Work pressure bar |
Burst pressure bar |
|---|---|---|---|---|---|---|
| 31.5 | 45.5 | 180 | 0 | 1190 | 20 | 60 |
| 38 | 52 | 230 | 0 | 1140 | 20 | 60 |
| 40 | 54 | 240 | 0 | 1480 | 20 | 60 |
| 42 | 56 | 250 | 0 | 1550 | 20 | 60 |
|
temperature Min °C |
temperature Max °C |
Work pressure bar |
Burst pressure bar |
Lengths M |
|---|---|---|---|---|
| -30 | 93 | 20 | 60 | * |
