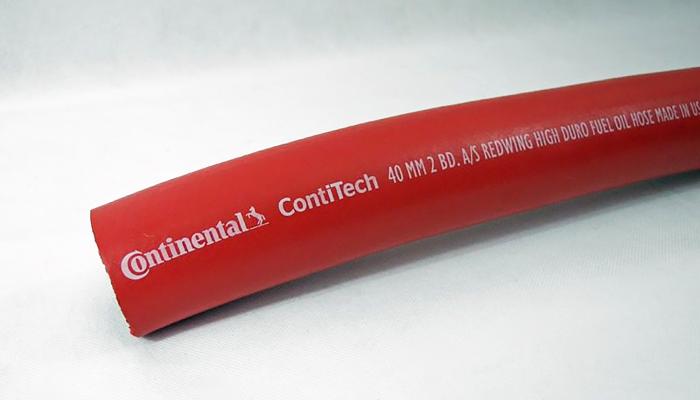

Redwing® Oil Fuel

Oil hoses

Redwing® Oil Fuel

High end tanker reel hose

Suitable for transfer and delivery of fuel oil and petroleum products for home delivery, commercial and industrial service

DOWNLOAD PRODUCTSHEET

Inside ø mm	Outside ø mm	Bending radius mm	Vacuum bar	Weight gr/m	Work pressure bar	Burst pressure bar
25.4	38.1	139	*	850	17.2	68.8
31.8	45.7	175	*	970	17.2	68.8
34.9	47.8	210	*	1040	17.2	68.8
38.1	53.3	225	*	1370	10.3	41.2

temperature Min °C	temperature Max °C	Work pressure bar	Burst pressure bar	Lengths M
-40	60	17.2	68.8	*
