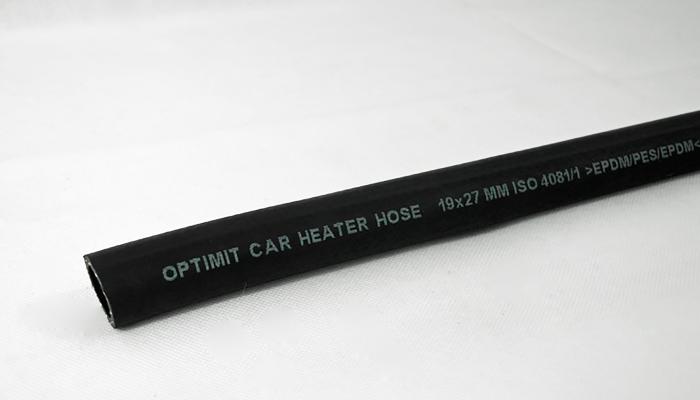

G1000 Heaterhose
EPDM radiator hose
Suitable for industrial and automotive applications at temperatures up to 100 °C
- Resistant to hot water with common antifreeze up to 120 °C
- Ozone and ageing resistant cover
- Smooth, flexible and kink resistant
|
Inside ø mm |
Outside ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Work pressure bar |
Burst pressure bar |
|---|---|---|---|---|---|---|
| 10 | 17 | 100 | 0 | 190 | 6 | 15 |
| 12.5 | 19.5 | 125 | 0 | 230 | 6 | 15 |
| 14 | 21 | 140 | 0 | 240 | 6 | 15 |
| 16 | 23 | 160 | 0 | 300 | 6 | 15 |
| 19 | 27 | 200 | 0 | 410 | 6 | 15 |
| 22 | 30 | 220 | 0 | 450 | 6 | 15 |
| 25 | 33 | 250 | 0 | 500 | 6 | 15 |
|
temperature Min °C |
temperature Max °C |
Work pressure bar |
Burst pressure bar |
Lengths M |
|---|---|---|---|---|
| -40 | 120 | 6 | 15 | * |
