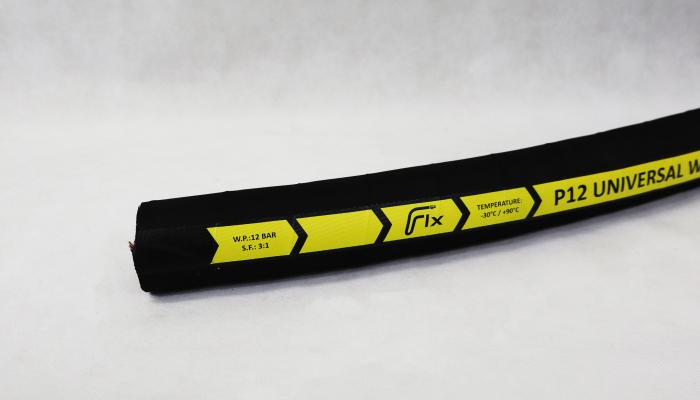

Universal P12
Industrial air and water delivery hose
Suitable for water 12 Bar max. 80 °C, pressurized air 10 Bar, bases and light chemicals
- Tube resistant to effect of oil mists
- Abrasion and weathering resistant cover
|
Inside ø mm |
Outside ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Work pressure bar |
Burst pressure bar |
|---|---|---|---|---|---|---|
| 22 | 30 | 220 | * | 449 | 12 | 40 |
| 25 | 34 | 250 | * | 555 | 12 | 40 |
| 28 | 38 | 290 | * | 715 | 12 | 40 |
| 30 | 41 | 300 | * | 818 | 12 | 40 |
| 32 | 42 | 320 | * | 768 | 12 | 40 |
| 35 | 47 | 350 | * | 1015 | 12 | 40 |
| 38 | 49 | 380 | * | 1024 | 12 | 40 |
| 40 | 54 | 400 | * | 1419 | 12 | 40 |
| 45 | 59 | 450 | * | 1515 | 12 | 40 |
| 48 | 62 | 480 | * | 1565 | 12 | 40 |
| 51 | 64 | 510 | * | 1560 | 12 | 40 |
| 55 | 69 | 550 | * | 1794 | 12 | 40 |
| 60 | 76 | 600 | * | 2315 | 12 | 40 |
| 63 | 79 | 630 | * | 2347 | 12 | 40 |
| 70 | 86 | 700 | * | 2504 | 12 | 40 |
| 76 | 91 | 760 | * | 2575 | 12 | 40 |
| 80 | 96 | 800 | * | 2936 | 12 | 40 |
| 90 | 106 | 900 | * | 3183 | 12 | 40 |
| 102 | 118 | 1020 | * | 3685 | 12 | 40 |
| 110 | 128 | 1100 | * | 4438 | 12 | 40 |
| 127 | 145 | 1270 | * | 5135 | 12 | 40 |
| 152 | 165 | 1490 | * | 5500 | 12 | 40 |
| 152 | 170 | 1520 | * | 5711 | 12 | 40 |
|
temperature Min °C |
temperature Max °C |
Work pressure bar |
Burst pressure bar |
Lengths M |
|---|---|---|---|---|
| -30 | 90 | 12 | 40 | * |
