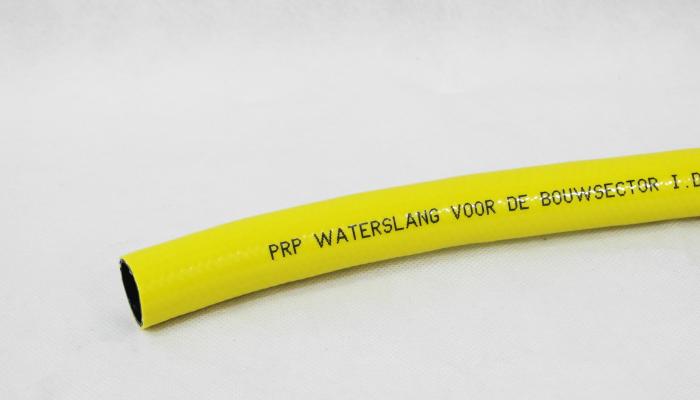

PVC Bouw- en Waterslang
Economical PVC construction and water hose
Suitable for water supply in concrete mixers, as a central heating filling hose, and as an irrigation hose in the garden sector
- Cost-effective design
- Abrasion resistant cover
- Extremely flexible design
|
Inside ø mm |
Outside ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Work pressure bar |
Burst pressure bar |
|---|---|---|---|---|---|---|
| 12.5 | 16.5 | 62 | * | 120 | 10 | 25 |
| 19 | 23 | 95 | * | 170 | 10 | 25 |
| 25 | 30 | 125 | * | 280 | 10 | 25 |
|
temperature Min °C |
temperature Max °C |
Work pressure bar |
Burst pressure bar |
Lengths M |
|---|---|---|---|---|
| -15 | 60 | 10 | 25 | * |
