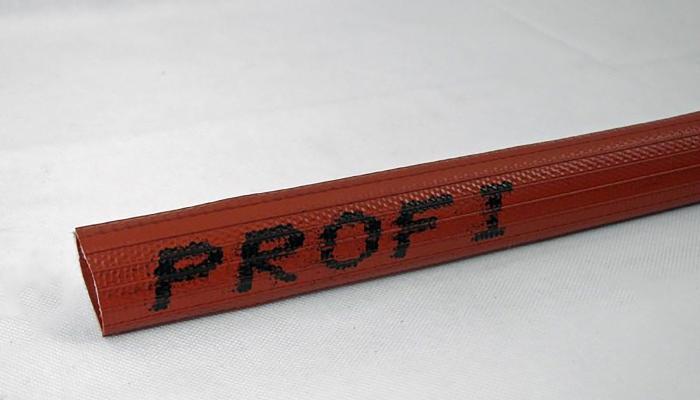

Universal Profi
High pressure multi-purpose layflat hose
Suitable for heavier applications within irrigation and water supply and drainage
- 2 ply pressure vulcanized red NBR tube
- Circular woven polyester jacket with red NBR coating
- UV, ozone and ageing resistant
- Oil and chemical resistant
|
Inside ø mm |
Outside ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Work pressure bar |
Burst pressure bar |
|---|---|---|---|---|---|---|
| 19 | 22.4 | * | * | 200 | 20 | 60 |
| 25 | 28.4 | * | * | 240 | 20 | 60 |
| 32 | 36.2 | * | * | 310 | 20 | 60 |
| 38 | 42.2 | * | * | 360 | 20 | 60 |
| 42 | 46.2 | * | * | 370 | 20 | 60 |
| 45 | 49.2 | * | * | 380 | 20 | 60 |
| 52 | 56.6 | * | * | 450 | 17 | 50 |
| 64 | 68.6 | * | * | 580 | 17 | 50 |
| 70 | 74.6 | * | * | 640 | 17 | 50 |
| 75 | 80.2 | * | * | 700 | 17 | 50 |
| 90 | 95.2 | * | * | 920 | 13 | 40 |
| 102 | 108 | * | * | 1050 | 13 | 40 |
| 110 | 116 | * | * | 1150 | 13 | 40 |
| 125 | 131 | * | * | 1300 | 12 | 35 |
| 152 | 158 | * | * | 1600 | 12 | 35 |
|
temperature Min °C |
temperature Max °C |
Work pressure bar |
Burst pressure bar |
Lengths M |
|---|---|---|---|---|
| -30 | 100 | 20 | 60 | * |
