3006 Oil Petrol AS

Multipurpose oilhose

Suitable for oil and petroleum products

  • Resistant to oil up to 100 °C, water up to 70 °C, lubricants and fats
  • Smooth, antistatic tube [R<2×10^5Ω ]
  • Smooth, non conductive cover [R>10^8Ω]
  • Spiralized textile reinforcement
  • Not suitable for aromatic hydrocarbons
Download PDF

Product specifications

Inner
ø mm
Outer
ø mm
Bending radius
mm
Vacuum
bar
Weight
gr/m
Pressure
bar
4.8 12.8 30.0 0 159 20
6.3 14.3 36.0 0 187 20
7.9 15.9 48.0 0 217 20
9.5 17.9 60.0 0 245 20
12.7 21.5 78.0 0 343 20
15.9 24.7 96.0 0 408 20
19.1 29.5 120.0 0 587 20
22.3 33.1 135.0 0 692 20
25.4 36.2 150.0 0 770 20
Temp. Min
°C
Temp. Max
°C
Working pressure
bar
Burst pressure
bar
Length
M
-40 +100 20 60 50

Norms / Standards

*

Branding

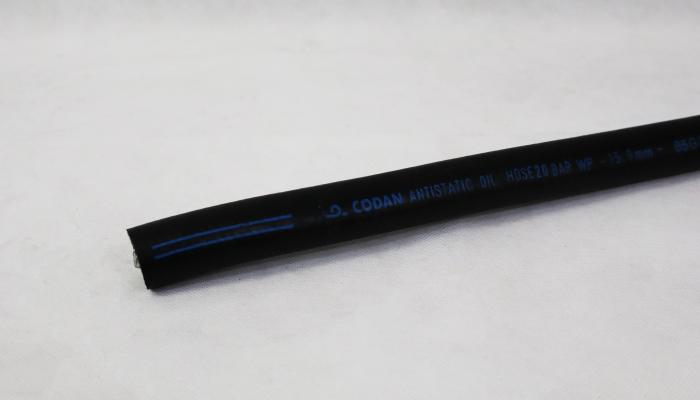

CODAN ANTISTATIC OIL HOSE 20 BAR WP - ID MM - BATCH NUMBER
