Aquaflat Medium
Uncategorized PVC layflat hoses
Medium duty PVC layflat hose
- Mono-layer construction, suitabale for irrigation systems using push-in adapters
- With polyester reinforcements
- Lightweight and can be coiled flat
- UV- en ozone resistant
- Smooth tube with low friction resistance
- Low elongation properties
- REACH/SVHC-compliant
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 32.0 | * | * | * | 210 | 6 |
| 38.0 | * | * | * | 290 | 6 |
| 51.0 | * | * | * | 350 | 6 |
| 64.0 | * | * | * | 480 | 6 |
| 76.0 | * | * | * | 590 | 6 |
| 102.0 | * | * | * | 1000 | 6 |
| 127.0 | * | * | * | 1600 | 6 |
| 152.0 | * | * | * | 2000 | 6 |
| 203.0 | * | * | * | 2800 | 6 |
| 254.0 | * | * | * | 3600 | 6 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -25 | +60 | 6 | * | 50 |
Norms / Standards
*
Branding

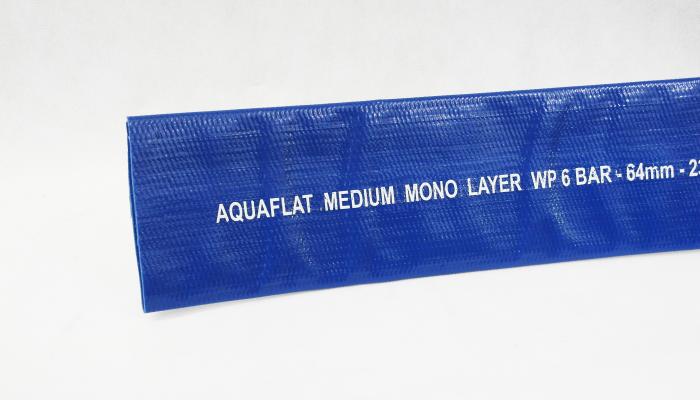

AQUAFLAT MEDIUM - MONO LAYER - WP 6 BAR - DIA (MM) - BATCH #
