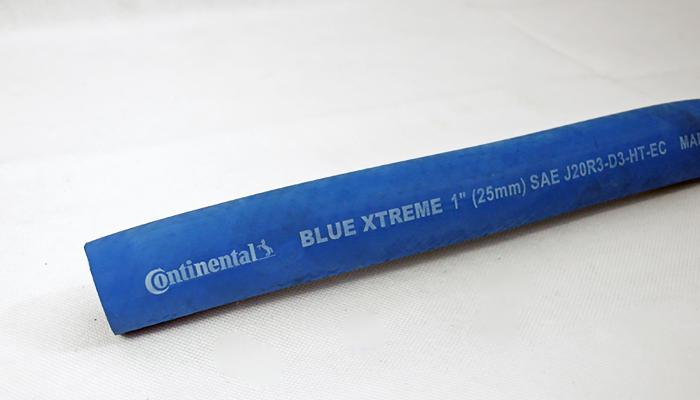

Blue Xtreme
Continental ContiTech Water hoses
Premium heaterhose for the automotive sector.
Suitable for high temperature applications in modern cooling systems
- Black Versigard® tube
- Blue smooth Versigard® cover
- High strength and temperature resistant Kevlar® reinforcements
- Flexible and kink resistant
- Produced according SAE J20R3 D3 HT EC
Also applicable for injection mould cooling
* ø 28mm with fabric pattern conforms to J20R3 D1
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 7.9 | 16.0 | 64 | 0 | 190 | 4 |
| 9.5 | 17.0 | 80 | 0 | 220 | 4 |
| 12.7 | 20.6 | 105 | 0 | 260 | 4 |
| 15.9 | 23.9 | 160 | 0 | 330 | 4 |
| 19.1 | 26.9 | 190 | 0 | 400 | 4 |
| 25.4 | 34.0 | 250 | 0 | 460 | 4 |
| 28.0 | 37.0 | 280 | 0 | 570 | 4 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -40 | +150 | 4 | 16 | 152.4 |
Norms / Standards
SAE J20R3 HT D3
Branding
CONTINENTAL BLUE XTREME ID, SAE J20R3-HT-D3-EC, MADE IN U.S.A.
