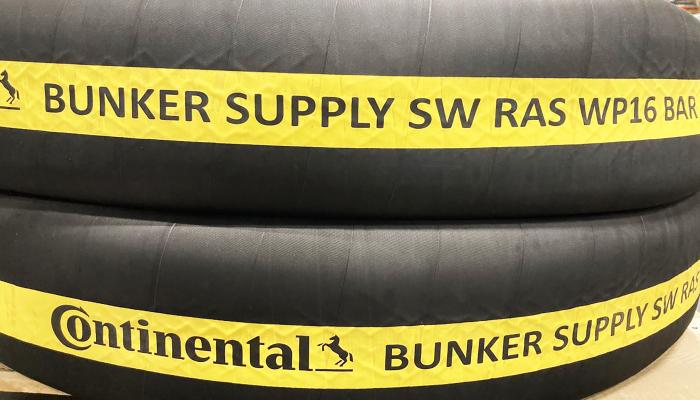

Bunker Supply SW RAS
Continental ContiTech Rig Supply & Bunker hoses
Rig Supply Lay Flat Bunker hose
Fully new designed. Greatly improved layer adhesion to counter vacuums generally encountered in bunkering operations or similar to conditions encountered in RAS operations.
- Improved tube and cover compounds suitable for marine fuels, diesel, gasoline, E20-E100, B20-B100
- Conductive OHM tube and static wire
- New liner production method to obtain smooth inner surface
- Longitudal layline to support twist free coupling alignment
- 4:1 Safety Factor, v max 15m/s at ambient temperature
- For methanol service please contact us
Ø 6″ hose tension tested acc. TR1803 to 167 kN LR report ROT 2310497
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 102.0 | 120.0 | 600 | 0 | 3880 | 16 |
| 152.4 | 171.0 | 900 | 0 | 5700 | 16 |
| 203.4 | 225.2 | 1200 | 0 | 9110 | 16 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -40 | +93 | 16 | 64 | 61 / 8"= 30,5 |
Norms / Standards
ISO 1307
Branding
CONTINENTAL CONTITECH BUNKER SUPPLY SW RAS WP ...BAR SF4:1 -M- TUBE R<1MEGA Ω - 60% AROMATICS - BATCH NR. - MADE IN CANADA
