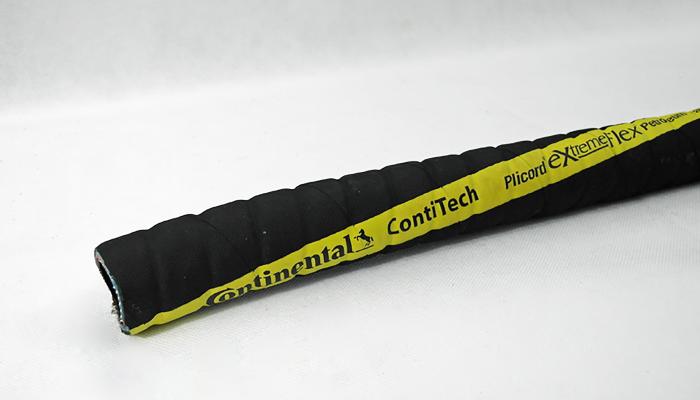

ExtremeFlex™ Petroleum

Extremely flexible and lightweight tank truck hose

  • Suitable for max. 60% aromatics, diesel, ethanol and gasoline
  • Wide corrugation for very small bendradii
  • Textile cord with twin spiral
  • Electrically conductive throug antistatic wire
  • Radii of 1 x inside diameter
Download PDF

Product specifications

Inner
ø mm
Outer
ø mm
Bending radius
mm
Vacuum
bar
Weight
gr/m
Pressure
bar
19.1 30.5 20.0 0.8 650 17
25.4 36.8 26.0 0.8 810 17
38.1 48.5 40.0 0.8 1080 17
50.8 61.8 52.0 0.8 1430 17
63.5 76.1 65.0 0.8 2100 17
76.2 88.8 77.0 0.8 2510 17
101.6 115.7 101.0 0.8 3610 17
Temp. Min
°C
Temp. Max
°C
Working pressure
bar
Burst pressure
bar
Length
M
-40 +93 17 68 30.5 / 61 / 122

Norms / Standards

ISO 8031

Branding

PLICORD® EXTREMEFLEX™ PETROLEUM TRANSFER
