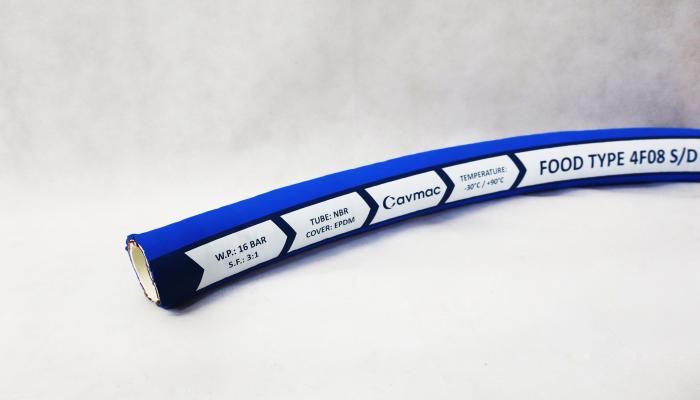

Food Type 4F08 HW
CavMac Rubber food hoses
High end FDA, EG and BfR food grade suction and delivery hose
- Suitable for food, dairy products, fatty acids and edible oils
- White food quality NBR lining
- Multiple plies of high tenacity polyester cord
- High tensile wire helix (BS EN 10324:2004)
- Blue smooth EPDM cover
- Continuous embedded copper wires [R 10^6 Ω]
- 16 bar working pressure / Safety Factor 3:1
- FDA 177:2600 compliant
- EG 1935/2004 + EG 2023/2006 compliant
- BfR XXI Category 4 compliant
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 25.0 | 37.6 | 100 | 0.9 | 910 | 16 |
| 32.0 | 44.6 | 128 | 0.9 | 1110 | 16 |
| 38.0 | 50.6 | 152 | 0.9 | 1280 | 16 |
| 51.0 | 63.8 | 204 | 0.9 | 1660 | 16 |
| 63.0 | 78.4 | 252 | 0.9 | 2630 | 16 |
| 76.0 | 91.4 | 300 | 0.9 | 3190 | 16 |
| 102.0 | 119.5 | 410 | 0.9 | 4920 | 16 |
| 152.4 | 177.0 | 608 | 0.9 | 1070 | 16 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -25 | +90 | 16 | 48 | 30,5 |
Norms / Standards
FDA 177:2600 + EG 1935/2004 + EG 2023/2006 + BFR XXI CATEGORY 4
Branding
4F08 HW WP 16BAR FDA EG 1935/2004 EG 2023/2006 (GLASS/FORK SYMBOL) BFR XXI CATEGORY 4 CAVMAC MADE IN IRELAND
