FW3 Firewater Deluge
Continental ContiTech Fire rated hoses
High pressure flameresistant hose
Suitable for seawater, fuels and muds
Fire rating: ABS approved at 800°C for 30 minutes (for sizes 2″ to 8″)
ISO 15540/15541:2016
- Reinforced with steel cord layers
- Fully certified ABS 24-2520461-PDA
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 51.0 | 79.0 | 400.0 | 0 | 4780 | 21 |
| 76.0 | 104.0 | 500.0 | 0 | 7130 | 21 |
| 102.0 | 130.0 | 600.0 | 0 | 7460 | 21 |
| 127.0 | 155.0 | 1030.0 | 0 | 9560 | 21 |
| 152.0 | 184.0 | 1140.0 | 0 | 14020 | 21 |
| 203.0 | 242.0 | 1250.0 | 0 | 22540 | 21 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -30 | +100 | 21 | 104 | 40 |
Norms / Standards
ISO 15540/ISO15541
Branding

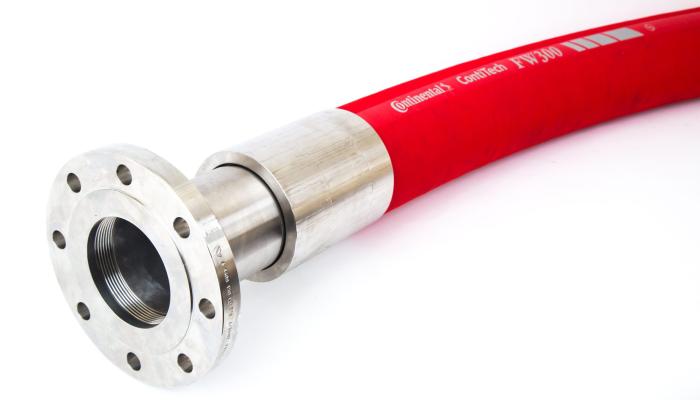

CONTINENTAL CONTITECH FW300
