G 5500

Oil and fuel hose

  • Suitable for oils, fuels, hydraulic fluids, air, water, chemicals, petrol, grease, diesel intermittend service of E5/10, waterup to 80 °C and inert gases
  • Smooth cover with excellent resistance to abrasion, oil and weathering
  • Electrically conductive [R<1MΩ]
  • Highly flexible and kink resistant
  • Not suitable for fuel E10>/B100

Not suitable for automotive fuel systems

Download PDF

Product specifications

Inner
ø mm
Outer
ø mm
Bending radius
mm
Vacuum
bar
Weight
gr/m
Pressure
bar
5.0 11.4 30.0 0 110 10
6.3 12.7 38.0 0 130 10
8.0 14.4 48.0 0 150 10
10.0 17.0 60.0 0 205 10
12.5 19.5 78.0 0 330 10
16.0 24.0 96.0 0 415 10
20.0 28.0 160.0 0 540 10
25.0 34.0 200.0 0 725 10
Temp. Min
°C
Temp. Max
°C
Working pressure
bar
Burst pressure
bar
Length
M
-30 +100 10 40 50

Norms / Standards

ISO 8031

Branding

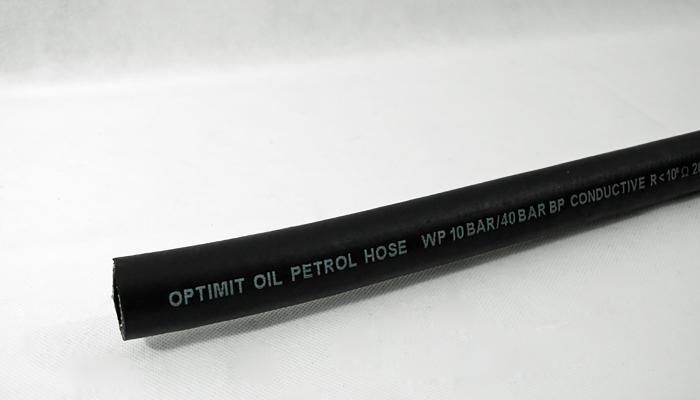

OPTIMIT OIL PETROL HOSE 10 BAR WP / 40 BAR BP CONDUCTIVE R<10^6 Ω
