Gorilla®
Continental ContiTech Multi-purpose hoses
Top grade multi-purpose hose
Excellent abrasion resistance and resistance to animal fats and oils
- Aramid fibre reinforced
- Smooth Carbryn® cover
- High flexibility, kink and torsion resistant
- Tube suitable for oil, fat, bases, air, kerosine, cold and hot water
- High tensile strength and dimensional stability make the hose specially suitable for hose reels
- Flame resistant MSHA 2G-14C/14
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 4.8 | 11.94 | 40 | 0 | 120 | 35 |
| 6.4 | 15.49 | 48 | 0 | 250 | 35 |
| 7.9 | 17.5 | 64 | 0 | 300 | 35 |
| 9.5 | 18.6 | 80 | 0 | 330 | 35 |
| 12.7 | 22.6 | 104 | 0 | 420 | 35 |
| 15.9 | 26.9 | 128 | 0 | 520 | 35 |
| 19.0 | 30.2 | 152 | 0 | 610 | 35 |
| 25.4 | 38.1 | 175 | 0 | 860 | 35 |
| 31.8 | 45.2 | 256 | 0 | 1180 | 35 |
| 38.0 | 51.8 | 304 | 0 | 1270 | 35 |
| 50.8 | 66.5 | 400 | 0 | 1760 | 35 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -29 | +88 | 35 | 140 | 61 / 137 / 152.4 |
Norms / Standards
MSHA 2G-14C/14
Branding

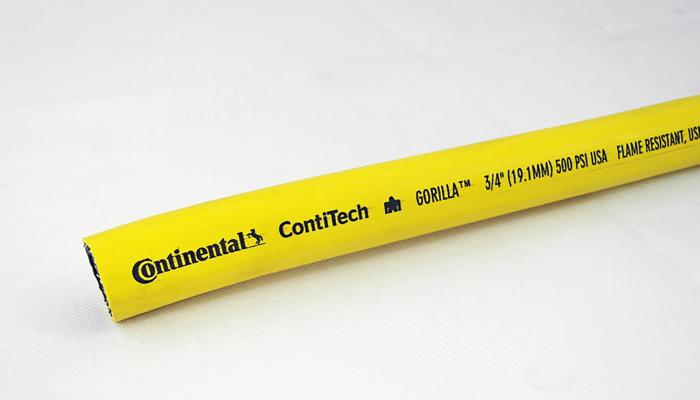

GORILLA® BY CONTINENTAL CONTITECH - ID" (ID MM) 500 PSI MADE IN USA FLAME RESISTANT USMSHA NO . 2G-IC-14C/39
