Hot Air Black SW

Continental ContiTech Hot air hoses

Hot air compressor hose

Suitable for silo truck compressors

  • Smooth, black tube
  • 4 ply construction for extra stability
  • Suitable for hot air up to 180 °C
  • Excellent ageing and weather resistance
Download PDF

Product specifications

Inner
ø mm
Outer
ø mm
Bending radius
mm
Vacuum
bar
Weight
gr/m
Pressure
bar
50.8 67.0 500.0 0 1955 13.5
60.0 76.0 620.0 0 2215 13.5
63.5 82.0 650.0 0 2390 13.5
76.2 94.2 760.0 0 2810 13.5
Temp. Min
°C
Temp. Max
°C
Working pressure
bar
Burst pressure
bar
Length
M
-30 +180 13.5 54 30.5 / 40

Norms / Standards

*

Branding

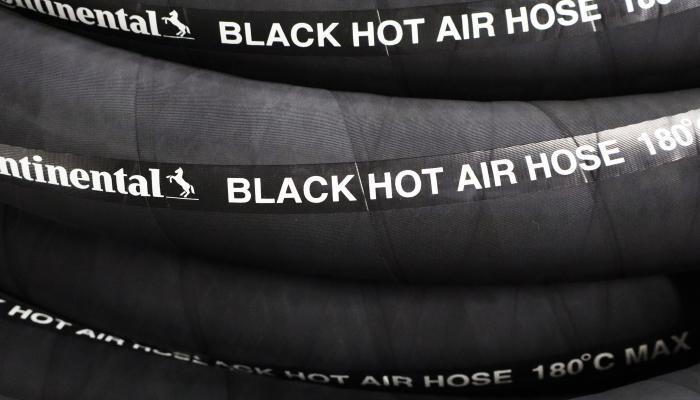

CONTINENTAL CONTITECH BLACK HOT AIR HOSE 180°C MAX MADE IN CANADA
