Nobelair® AS
Tricoflex PVC - PU air hoses
Thermoplastic hose
Suitable for air, water and gases
- Highly flexible and kink resistant
- Conductive tube [R<1MΩ]
- Suitable for ATEX zones 0 and 1
- Specially suited for paintspray units
- Silicone free hose
- Peaktemperature max. 90 °C at 6 bar
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 8.0 | 15.0 | 48.0 | 0 | 168 | 16 |
| 9.0 | 16.0 | 54.0 | 0 | 183 | 16 |
| 10.0 | 17.5 | 60.0 | 0 | 216 | 16 |
| 12.0 | 20.0 | 72.0 | 0 | 267 | 16 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -20 | +90 | 16 | 64 | 20 / 40 |
Norms / Standards
ISO 8031
Branding

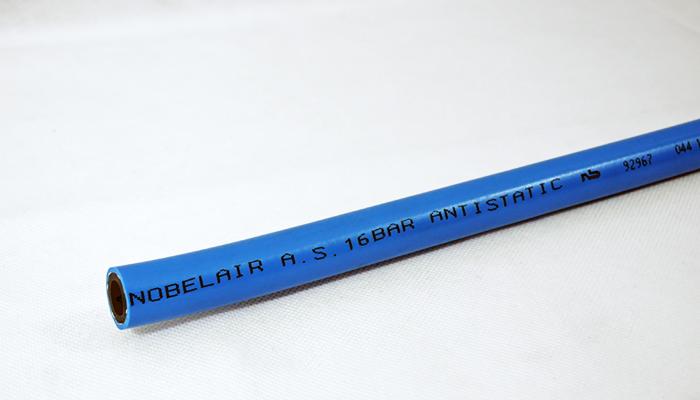

NOBELAIR A.S. 16 BAR ANTISTATIC [BATCH NUMBER]
