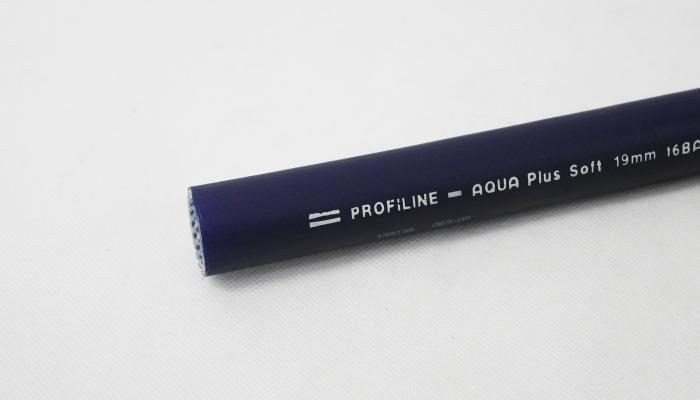

Profiline-Aqua Plus Soft
Tricoflex Potable water hoses
Multi-purpose food hose
Suitable for potable water, food products, various chemicals
- Improved flexibility
- Excellent dimensional stability
- Also suitable for use in de-ionized water applications
- Multi layer hose form PEHD/EVA/PE
- Conforms to EC 10/2011, DEHP free
Approved for potable water Hygieneinstitut Gelsenkirchen KTW-A and DVHW W270
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 13.0 | 19.0 | 125.0 | 0 | 134 | 16 |
| 19.0 | 26.0 | 210.0 | 0 | 221 | 16 |
| 25.0 | 33.5 | 230.0 | 0 | 348 | 16 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -15 | +60 | 16 | 48 | 50 |
Norms / Standards
PEHD, KTW
Branding
PROFILINE-AQUA PLUS SOFT Ø INN 16 BAR KTW <> + W270 GEPRÜFTER TRINKWASSERSCHLAUCH GLASS/FORK SYMBOL (EU) N°10/2011 [YEAR OF FABRICATION] [BATCH NUMBER]
