PRP Clean Flow

LOGO/Danfoss Telewash

New Reverse Osmosis water hose from special TP Polymer for industrial window cleaning

  • Tightly braided reinforcements for excellent kink and crush resistance
  • Special TP Polymer for excellent UV and ozone resistance
  • Excellent thermal stability with Water 70 °C/6h at 80% burst pressure retention
  • Air ageing 90 °C/28d at 75% tensile strenghts retention
  • 500N tensile strenghts
  • Low temperature flexibility (-30 °C)
  • REACH/RoHS compliant
  • Silicone free
Download PDF

Product specifications

Inner
ø mm
Outer
ø mm
Bending radius
mm
Vacuum
bar
Weight
gr/m
Pressure
bar
6.0 10.0 25 0 90 20
8.0 13.0 35 0 150 20
Temp. Min
°C
Temp. Max
°C
Working pressure
bar
Burst pressure
bar
Length
M
-30 +70 20 60 6mm - 150m / 8mm - 100m

Norms / Standards

ISO R 1307/188

Branding

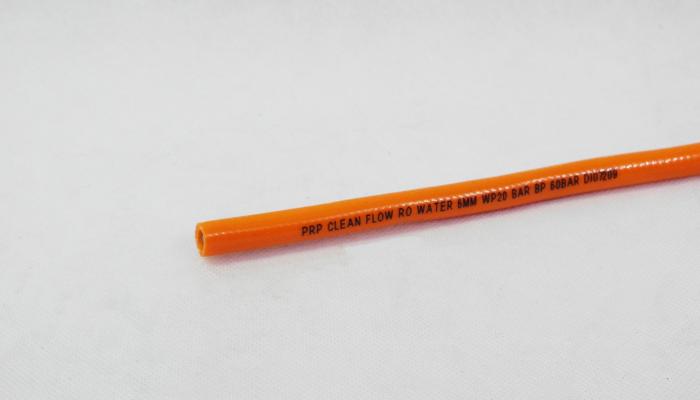

PRP CLEAN FLOW RO WATER - DIA - WP 20 BAR - BATCH NR.
