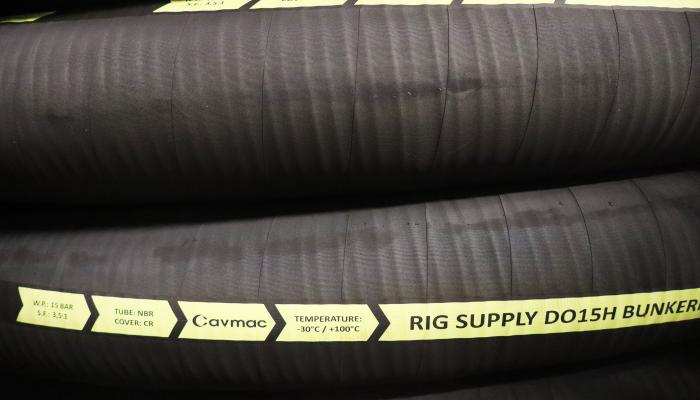

Rig Supply DO15H
CavMac Rig Supply & Bunker hoses
Heavy duty marine bunkering suction & discharge hose
Suitable for gasoline, diesel oil, fuel oil with aromatic content up to 50%
- Black NBR tube
- High tenacity polyester tyre cord and steel wire helix (BS EN 10324:2004)
- Embedded copper wire [R106 Ω-M]
- Black smooth CR Cover, oil, abrasion and weather resistant
- Also suitable for seawater, fresh water, mud, air and other general purposes
- Safety Factor 4:1
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 76.0 | 92.6 | 460 | 0.9 | 3350 | 15 |
| 102.0 | 119.7 | 620 | 0.9 | 6490 | 15 |
| 127.0 | 145.1 | 770 | 0.9 | 9270 | 15 |
| 152.0 | 174.9 | 920 | 0.9 | 12280 | 15 |
| 203.0 | 225.8 | 1070 | 0.9 | 13100 | 15 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -30 | +100 | 15 | 60 | 60 |
Norms / Standards
ISO 1307
