Rig Supply HW

Continental ContiTech Rig Supply & Bunker hoses

Bunker suction- & discharge hose

Suitable for loading and unloading of tankers and flexible connection between supply vessel and platform in offshore installations

  • Suitable for hydrocarbons max 55% aromatics, solids, mud, diesel and abrasive products
  • 4 high tensile cord plies with twin steel spiral
  • High abrasion and oil resistant cover
Download PDF

Product specifications

Inner
ø mm
Outer
ø mm
Bending radius
mm
Vacuum
bar
Weight
gr/m
Pressure
bar
76.2 92.0 456.0 0.9 3550 20
101.6 119.0 612.0 0.9 4950 20
127.0 148.0 762.0 0.9 7440 20
152.4 173.0 912.0 0.9 8970 20
203.2 233.0 1218.0 0.9 16450 20
254.0 290.0 1524.0 0.9 25670 20
Temp. Min
°C
Temp. Max
°C
Working pressure
bar
Burst pressure
bar
Length
M
-40 +93 20 60 30.5 / 61 / 122

Norms / Standards

ISO R 1307

Branding

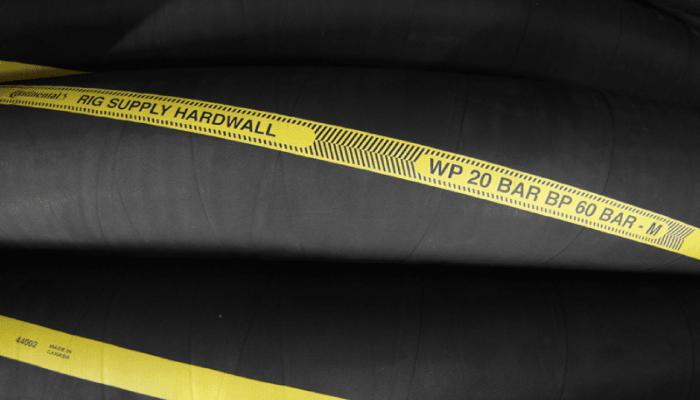

CONTINENTAL CONTITECH RIG SUPPLY HARDWALL WP 20 BAR BP 60 BAR - M MADE IN CANADA
