Rig Supply PW20S
CavMac Potable water bunker hoses
Heavy duty marine bunkering discharge hose for potable water and fresh water, FDA approved
- White NR tube, non-toxic, non-tainting, FDA 177:2600 compliant
- Polyester Tyre Cord
- Embedded coper wire [R106 Ω-M]
- Orange smooth EPDM cover, chemical and weather resistant
- Safety Factor 4:1
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 76.0 | 90.0 | 460 | 0 | 3550 | 20 |
| 102.0 | 120.0 | 620 | 0 | 5010 | 20 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -30 | +80 | 20 | 80 | 60 |
Norms / Standards
FDA 177:2600
Branding

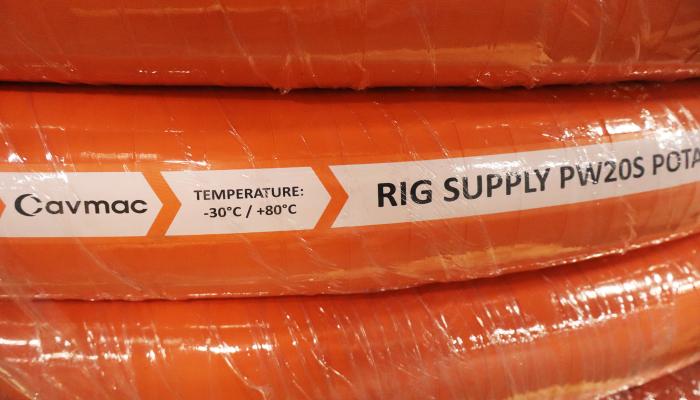

PRP – POTABLE WATER PW20 S WP 20 BAR S.F. 4:1 – M – CAVMAC – MADE IN IRELAND
