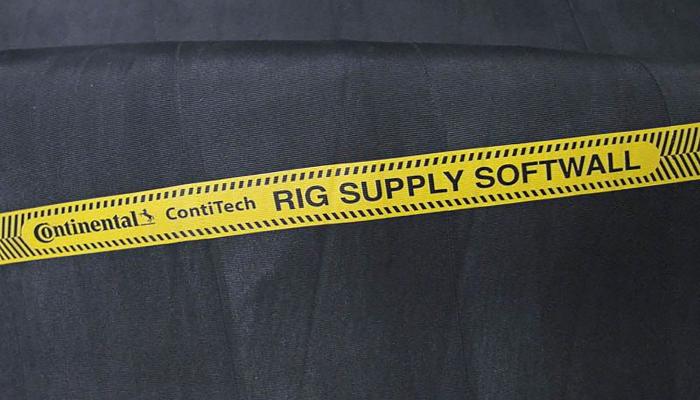

Rig Supply SW
Continental ContiTech Rig Supply & Bunker hoses
Heavy duty layflat bunkerhose
Suitable for dock loading and supply for offshore drilling rigs
- Tube resistant to hydrocarbons up to 55% aromatic contents, cement, barytes and oils
- Abrasion, UV- and oilresistant cover
- 4 high tensile cord plies
- Two antistatic wires
- Elongation < 4% at 17 Bars, max. end load at break 6,5 tons
- Suitable for use on hose reels
Not suitable for ship-to-ship application
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 76.2 | 90.0 | 457 | 0 | 2850 | 20 |
| 101.6 | 116.0 | 660 | 0 | 3990 | 20 |
| 127.0 | 143.0 | 762 | 0 | 4990 | 20 |
| 152.4 | 172.0 | 900 | 0 | 5700 | 16 |
| 203.2 | 223.0 | 1200 | 0 | 8500 | 20 |
| 254.0 | 280.0 | 1500 | 0 | 13940 | 20 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -40 | +93 | 16/20 | 64/60 | 30.5 / 61 / 122 |
Norms / Standards
ISO 1307 - ISO 8031 Type M
Branding
CONTINENTAL CONTITECH RIG SUPPLY SW WP 20BAR - M MADE IN CANADA
