Super Tress-Nobel® 80 bar

Tricoflex Water hoses

High pressure 5 ply TPE hose

Suitable for water, compressed air, fluid fertilizers, insecticides and pesticides

  • Higly flexible and kink resistant
  • Low friction pressure loss
  • High UV and weather resistance
  • With braided polyester reinforcements for low elongation and high resistance against pressure surges
Download PDF

Product specifications

Inner
ø mm
Outer
ø mm
Bending radius
mm
Vacuum
bar
Weight
gr/m
Pressure
bar
8.0 16.5 56.0 0 215 80
10.0 19.0 70.0 0 273 80
12.0 22.0 84.0 0 356 80
16.0 26.5 112.0 0 459 80
19.0 30.5 153.0 0 581 80
Temp. Min
°C
Temp. Max
°C
Working pressure
bar
Burst pressure
bar
Length
M
-15 +60 80 240 50

Norms / Standards

*

Branding

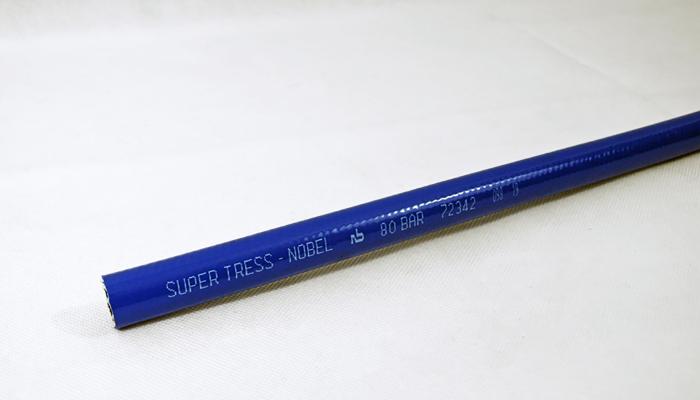

SUPER TRESS-NOBEL 80 BAR [BATCH NUMBER]
