TMSL30 CR Pet Drop Flex
Semperflex Optimit Oil suction & discharge hoses
High-quality tank hose with spiral according to EN1761:1999
Suction and delivery hose with corrugated cover for filling and discharging tanks, petrol tankers and ships with unleaded fuels [EN228:2017] with aromatic content of components 60% max.
- Flat corrugated CR cover with cloth impression, resistant to ozone and weather, abrasion resistant, resistant to oil [according SAE J517:2017]
- Suitbale for B7 (EN590), B20, Biodiesel (B100/FAME), E5 (EN590), E10, E85, E100
- Textile reinforcements, zinc plated double steel wire helix, 2 crossed copper wires
- Smooth NBR tube, electrically conductive [R < 106 Ω]
- Suitable for industrial oils, diesel oils [EN 590:2017], fuel oils [DIN 51 603 parts 1-5] and mineral oil-based hydraulic oils
- MADE IN EU
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 50.8 | 63.5 | 130 | 0.9 | 612 | 10 |
| 76.2 | 91.4 | 220 | 0.9 | 816 | 10 |
| 102.0 | 117.6 | 310 | 0.9 | 1025 | 10 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -40 | +93 | 10 | 30 | 30,5 |
Norms / Standards
EN1761:1999
Branding

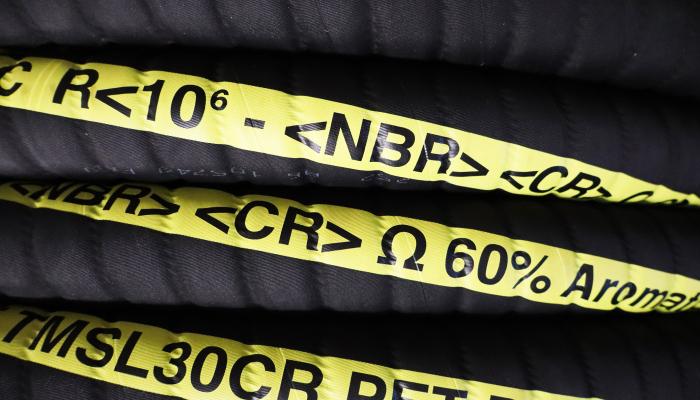

OPTIMIT TMSL30CR PET DROP FLEX WP 150 PSI (10BAR) TYPE SD -40C+93C R<10^6 -
