Unicord
Continental ContiTech Multi-purpose

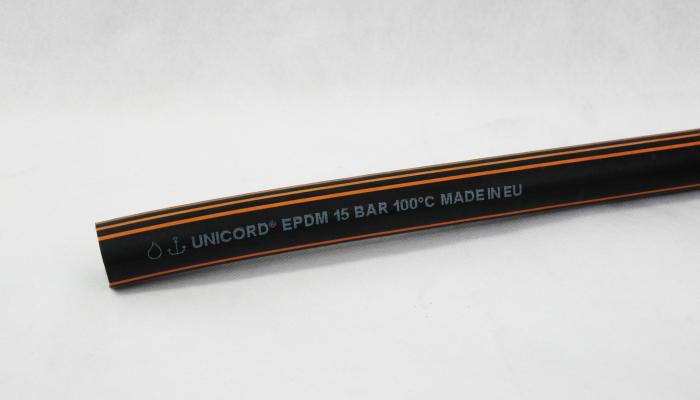

Multi-purpose EPDM hose with six orange stripes
Technically identical to Phoenix Eurotrix.
- Suited as wash down hose,for hot and cold water and wide range of industrial applications
- Extremely flexible and kink resistant
- Silicone and halogene free
- Made in Germany
Product specifications
| Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
|---|---|---|---|---|---|
| 13 | 20 | 78 | 0 | 305 | 15 |
| 19 | 27 | 100 | 0 | 360 | 15 |
| 25 | 34 | 150 | 0 | 410 | 15 |
| Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
|---|---|---|---|---|
| -40 | +100 | 15 | 45 | 40 |
Norms / Standards
ISO R 1307
Branding
UNICORD EPDM 15 BAR 100°C MADE IN GERMANY BY PHOENIX
