Vitryl
Uncategorized Food hoses

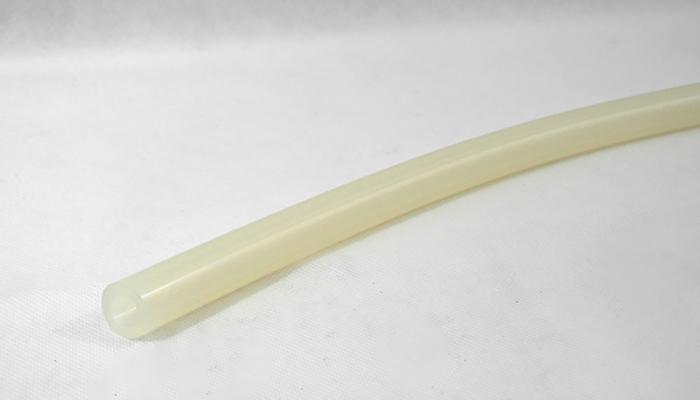

Silicone hose unreinforced
- Tolerance DIN ISO 3302-1 E2
- 60 ± 5 Shore, unpowdered
- FDA-CFR 21 Part.1772600, BFR XV
- KTW, WRAS conformity
- Not suitable for peristaltic pumps and medical applications
Upon request also reinforced versions
Product specifications
Inner ø mm |
Outer ø mm |
Bending radius mm |
Vacuum bar |
Weight gr/m |
Pressure bar |
---|---|---|---|---|---|
2.0 | 4.0 | * | * | 11 | 0 |
3.0 | 5.0 | * | * | 15 | 0 |
3.0 | 6.0 | * | * | 24 | 0 |
3.0 | 7.0 | * | * | 37 | 0 |
4.0 | 6.0 | * | * | 18 | 0 |
4.0 | 8.0 | * | * | 44 | 0 |
5.0 | 8.0 | * | * | 36 | 0 |
6.0 | 9.0 | * | * | 41 | 0 |
6.0 | 10.0 | * | * | 58 | 0 |
6.0 | 12.0 | * | * | 98 | 0 |
7.0 | 10.0 | * | * | 46 | 0 |
8.0 | 11.0 | * | * | 52 | 0 |
8.0 | 12.0 | * | * | 73 | 0 |
8.0 | 14.0 | * | * | 120 | 0 |
10.0 | 14.0 | * | * | 87 | 0 |
10.0 | 16.0 | * | * | 132 | 0 |
12.0 | 16.0 | * | * | 102 | 0 |
12.0 | 17.0 | * | * | 132 | 0 |
15.0 | 21.0 | * | * | 197 | 0 |
20.0 | 27.0 | * | * | 300 | 0 |
Temp. Min °C |
Temp. Max °C |
Working pressure bar |
Burst pressure bar |
Length M |
---|---|---|---|---|
-50 | +200 | 0 | 0 | 25 |
Norms / Standards
FDA - DFR 21 PART 1772600 - BFR XV - KTW - WRAS
Branding
NEUTRAL
