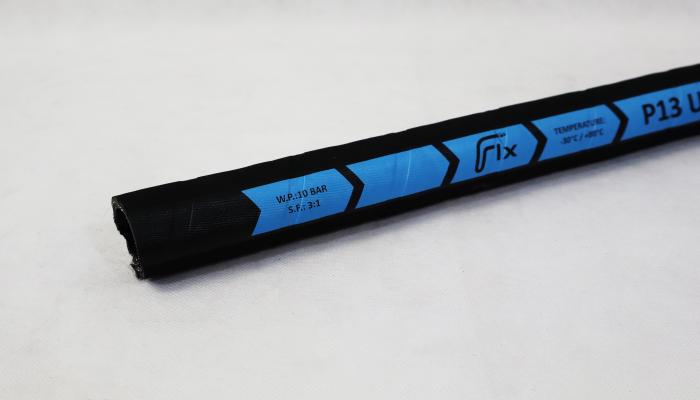

Water SD P13 10 bar

SEL/Danfoss Industrial water suction & discharge hoses

Industrial rubber suction and discharge hose

Suitable for water, manure, suspended solids and light abrasives

  • Smooth cover
  • Abrasion resistant tube
  • Abrasion and weathering resistant cover

Suitable for industrial and agricultural applications

Download PDF

Product specifications

Inner
ø mm
Outer
ø mm
Bending radius
mm
Vacuum
bar
Weight
gr/m
Pressure
bar
25.0 34.0 125 0.9 880 10
32.0 42.0 160 0.9 1100 10
38.0 48.0 190 0.9 1250 10
40.0 53.0 200 0.9 1520 10
42.0 54.0 210 0.9 1460 10
51.0 62.0 255 0.9 2200 10
60.0 73.0 300 0.9 2300 10
63.0 75.0 315 0.9 2380 10
76.0 89.0 380 0.9 3010 10
80.0 92.0 405 0.9 3340 10
90.0 104.0 420 0.9 3510 10
102.0 115.0 510 0.9 4090 10
127.0 142.0 635 0.9 6500 10
152.0 168.0 760 0.8 7650 10
203.0 224.0 1015 0.8 12500 10
254.0 282.0 1270 0.8 17000 10
305.0 332.0 1525 0.8 24000 10
Temp. Min
°C
Temp. Max
°C
Working pressure
bar
Burst pressure
bar
Length
M
-25 +80 10 30 10 / 40

Norms / Standards

ISO R 1307

Branding

UNIVERSAL WATER SD 10 BAR
